The ForkRite system provides a simple and effective solution for securing loads on forklift tines. The unit comprises four identical cleats—two positioned at the front and two at the rear—secured using ratchet straps. The use of identical cleats eliminates any confusion during setup, allowing for quick and efficient installation without the need to match components to specific tine positions.

ForkRite units have been manufactured in three sizes to suit 4T, 6T, and 10T forklifts. Each set has been RPEQ-engineered and load restraint tested to ensure optimal safety, with a Safe Work Instruction developed to support correct use.

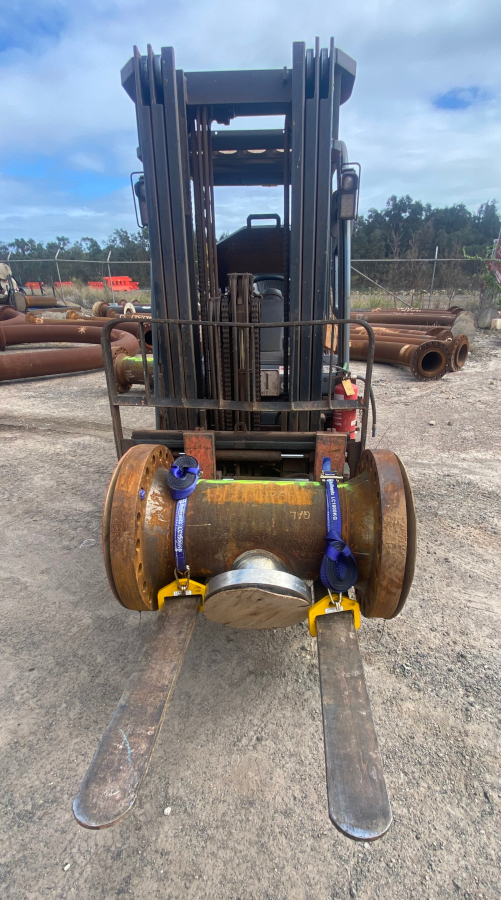

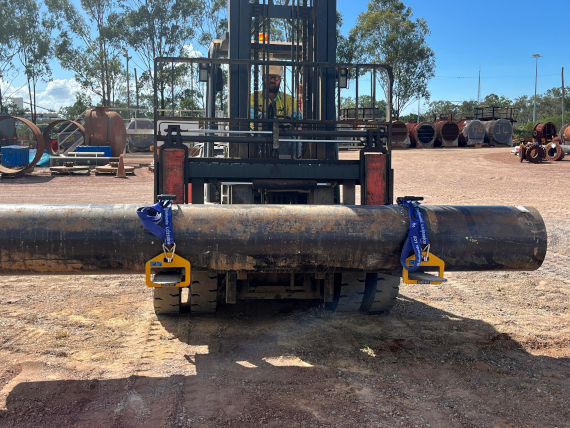

The ForkRite load restraint system is suitable for a wide range of loads and is particularly effective in preventing load movement or slippage during transport, especially when operating on rough or uneven surfaces.

1 LFRC
4 LFRCs - SET
4 LFRCs + 2 Straps - KIT

Please fill out the form below to request a personalised quote

LIFT TRUCK RESTRAINT CLAMP
QUOTE REQUEST FORM

LIFT TRUCK LFRC REFERENCE GUIDE

FORKLIFT
CLASS		 TYNE WIDTH
(DIM "A")		 TYNE THICK
(DIM "B")		 LIFT TRUCK
CAPACITY		 SUITABLE LFRC
CLASS 2 100mm 45mm Up to 2,500kgs LCRF-02T (max. 2000kg Operating Load)
CLASS 3 125mm 50mm 2,500-4,500kgs LCRF-02T (max. 2000kg Operating Load)
CLASS 4 150mm 60mm 4,500-7,000kgs LCRF-03T (max. 3000kg Operating Load)
CLASS 5 180mm 75mm 7,000-11,000kgs LCRF-05T (max. 5000kg Operating Load)
* to be used as a guide only Confirm actual Tyne dimensions for suitability as sizing varies between Tyne Manufacturers

LFRC PRICING SCHEDULE

MODEL DESCRIPTION PRICE
(AUD)		 QUANTITY
REQUIRED
LFRC-02T Lift Truck Restraint Clamp – Tyne Slot 132W x 55H (1 LFRC) $145.00
LFRC-02T-SET Lift Truck Restraint Clamp – Tyne Slot 132W x 55H (4 LFRCs) $484.00
LFRC-02T-KIT Lift Truck Restraint Clamp – Tyne Slot 132W x 55H (4 LFRCs + 2 Straps) $510.00
LFRC-03T Lift Truck Restraint Clamp – Tyne Slot 160W x 70H (1 LFRC) $149.00
LFRC-03T-SET Lift Truck Restraint Clamp – Tyne Slot 160W x 70H (4 LFRCs) $500.00
LFRC-03T-KIT Lift Truck Restraint Clamp – Tyne Slot 160W x 70H (4 LFRCs + 2 Straps) $546.00
LFRC-05T Lift Truck Restraint Clamp – Tyne Slot 190W x 85H (1 LFRC) $160.00
LFRC-52T-SET Lift Truck Restraint Clamp – Tyne Slot 190W x 85H (4 LFRCs) $550.00
LFRC-05T-KIT Lift Truck Restraint Clamp – Tyne Slot 160W x 70H (4 LFRCs + 2 Straps) $610.00

OPTIONAL ACCESSORIES

MODEL DESCRIPTION PRICE
EACH (1)		 QUANTITY
REQUIRED
BEV-RTD055PL-REV Reversible Hand Ratchet and Strap 50mm x 9M LC 2500kg (BEAVER) (1 pc) $30.00
BEV-349035RB Hand Ratchet and Strap 35mm x 6M 1500kg c/w hook & keeper (BEAVER) (1 pc) $22.50
BEV-349025RB Hand Ratchet and Strap 25mm x 5M LC 500kg (BEAVER) (1 pc) $13.00
HTE-LFRC-DP Replacement Data Plate (1 pc) $12.00

All Prices Exclude GST
All Prices are in AUD (Australian Dollars)
Prices do not include Shipping
Pricing valid to 30/12/2026

For any enquiries please contact our office on 07 4886 9788

Documentation

Quick answers to common questions

ForkRite FAQ

If you have any questions please call our office on 07 4886 9788

Measure the width and thickness of your forklift tynes to identify the correct LFRC size, then order the corresponding KIT.

Yes, LFRC can be purchased as a SET of four Restraint Clamps.

All the components of the LFRC have the option to be purchased individually.
